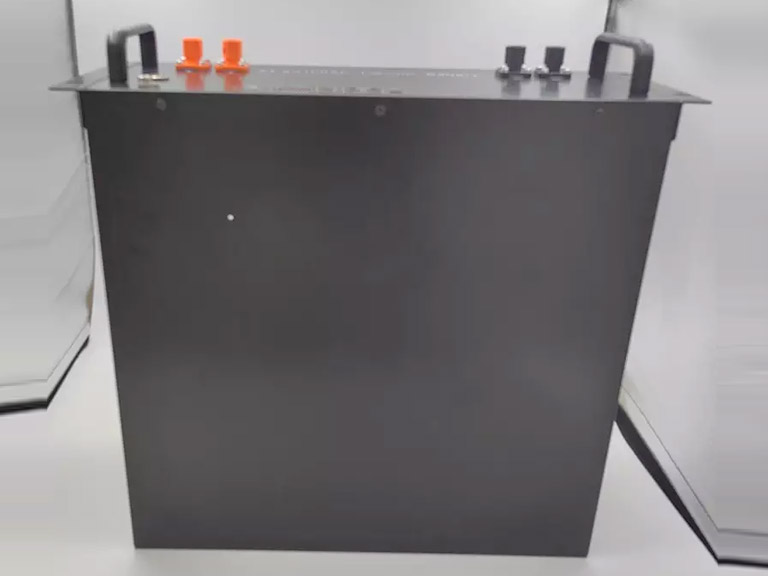

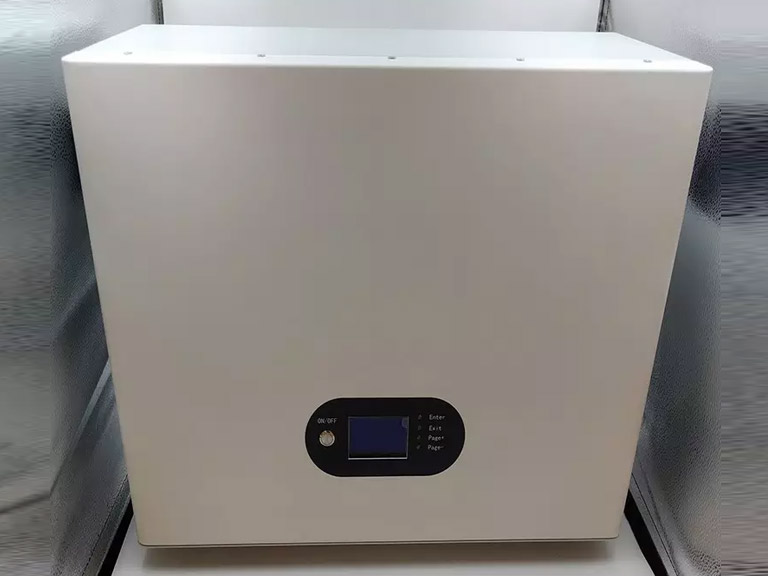

OEM Low Voltage 48V 100AH/200AH Wall Mounted Lithium Battery Pack OEM Low Voltage 48V 100AH/200AH Wall Mounted Lithium Battery Pack
OEM Low Voltage 48V 100AH/200AH Wall Mounted Lithium Battery Pack

Inquiry now

48V 100AH/200AH Wall Mounted Lithium Battery Pack, Life04 battery. Household use.

Payment : 30% by T/T in advance

Shipping Port : Shanghai or Ningbo

Lead Time : 10-15 working days after payments

Advantages:

High performance traction* LiFePO4 100Ah lithium battery replaces a 200Ah

lead battery

Safest lithium (LiFePO4)technology

Long service life

High discharge current

Light weight

Low automatic discharge

Performance Parameter
Product Nominal Voltage Nominal Capacity Dimension  Weight
48V100AH DC48V 100AH 440*453*183mm 49.5KG
48V200AH DC48V 200AH 440*804*196mm 99KG

Product 48V100AH 48V200AH
Nominal Voltage (V) 48 48
Nominal Capacity (WH) 4800 9600
Usable Capacity (WH) 4320 8640
Discharge Voltage (V) 43.5 43.5
Charge Voltage (V) 52.5 52.5
Recommend Charge/ Discharge Current (A) 50 100
Max.Charge/ Discharge Current(A) 100 (3S) 200(3S)
Communication RS485/CAN/Bluetooth(Optional) RS485/CAN/Bluetooth(Optional)
Working Temperature 0-40? 0-40?
Storage Temperature -20-70? -20-70?
  Humidity  10%-80%  10%-80%
  Certification  CE/IEC/ UN38.3/MSDS  CE/IEC/ UN38.3/ MSDS
  Design Life  10 years+  10 years+
  Cycle Life  ≥6000@90%DOD(25±5?)  ≥6000@90%DOD(25±5C)
  Electrical Design Redundancy  >20%  >20%



FAQ:

1: Can the product be shipped to my area?
We export to most countries/regions (Centre/ South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.

2: How can I make payment?
100% T/T or maximum we can accept 30% T/T in advance and 70% T/T upon goods ready before shipment.
