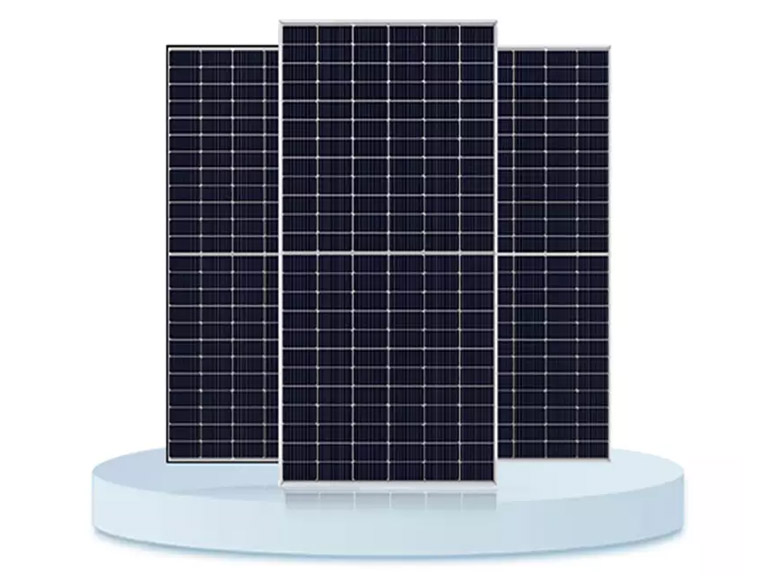

PNG 370W-385W 166mm Mono PERC Solar Module
370w 375w 380w with 166mm monocrystalline perc technology. Widely used for residential and commercial.
Payment : 30% by T/T in advance
Shipping Port : Shanghai or Ningbo
Lead Time : 10-15 working days after payment
Advantages:
Discover the extraordinary advantage of our state-of-the art solar panels seamlessly integrated with the latest breakthrough in solar cell technology. Boasting an impressive 166mm solar cell dimension, these panels go beyond conventional solar solutions, revolutionizing the way we harness the power of the sun.
Electrical Specifications
Module Type |
PNGMH60-B6-370 |
PNGMH60-B6-375 |
PNGMH60-B6-380 |
PNGMH60-B6-385 |
||||
Testing Condition |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
Max. Power (Pmax/W) |
370 |
276 |
375 |
280 |
380 |
284 |
385 |
285 |
Voltage at Max. Power (Vmp/V) |
34.4 |
32.0 |
34.6 |
32.2 |
34.8 |
32.4 |
35.0 |
32.3 |
Current at Max. Power (Imp/A) |
10.76 |
8.63 |
10.84 |
8.69 |
10.92 |
8.76 |
11.00 |
8.82 |
Open Circuit Voltage (VocA/) |
40.9 |
38.3 |
41.1 |
38.5 |
41.3 |
38.7 |
41.5 |
38.7 |
Short Circuit Current (Isc/A) |
11.52 |
9.32 |
11.60 |
9.38 |
11.69 |
9.45 |
11.77 |
9.49 |
Module Efficiency (%) |
20.31% |
20.59% |
20.86% |
21.13% |
||||
Power Tolerance (W) |
0~+5 |
black solar panel bifacial solar module
Standard Test Condition (STC)?Irradiance 1000W/m², Cell Temperature 25?, AM1.5
Nominal Module Operating Temperature (NOCT)?Irradiance 800W/m², Ambient Temperature 20?, AM1.5, Wind Speed 1m/s
Cell Type |
9BB Monocrystalline 166x83mm |
No. of Cells |
120 (6x20) |
Dimension |
1755x1038x35mm |
Weight |
19.8kg |
Glass |
3.2mm, Low Iron Tempered Glass |
Frame |
Anodized Aluminium Alloy |
Junction Box |
IP68, 3 diodes |
Output Cables |
4mm², Length 300mm or customized |
Connector type |
MC4 compatible |
NOCT Temperature |
44? ±2? |
Temperature Coefficient (Pmax) |
-0.36%/? |
Temperature Coefficient (Voc) |
-0.28%/? |
Temperature Coefficient (Isc) |
0.05%/? |
Maximum system voltage (IEC) |
1500V DC |
Snow / Wind |
5400Pa / 2400Pa |
Operating Temperature |
-40? ~ +85? |
Maximum series fuse rating |
20A |
Per Pallet |
31 pcs |
Per20'GP |
186 pcs |
Per 40' HQ Container |
806 pcs |
FAQ:
1.Can the product be shipped to my area?
We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
2. When is the lead time ?
We will deliver around 7 working days after payment !
3. What are the advantages of your company ?
In the past years, we mostly do OEM for Tier 1 . From 2017, we are launching our own brands , with good quality and competitive offer .
